Description

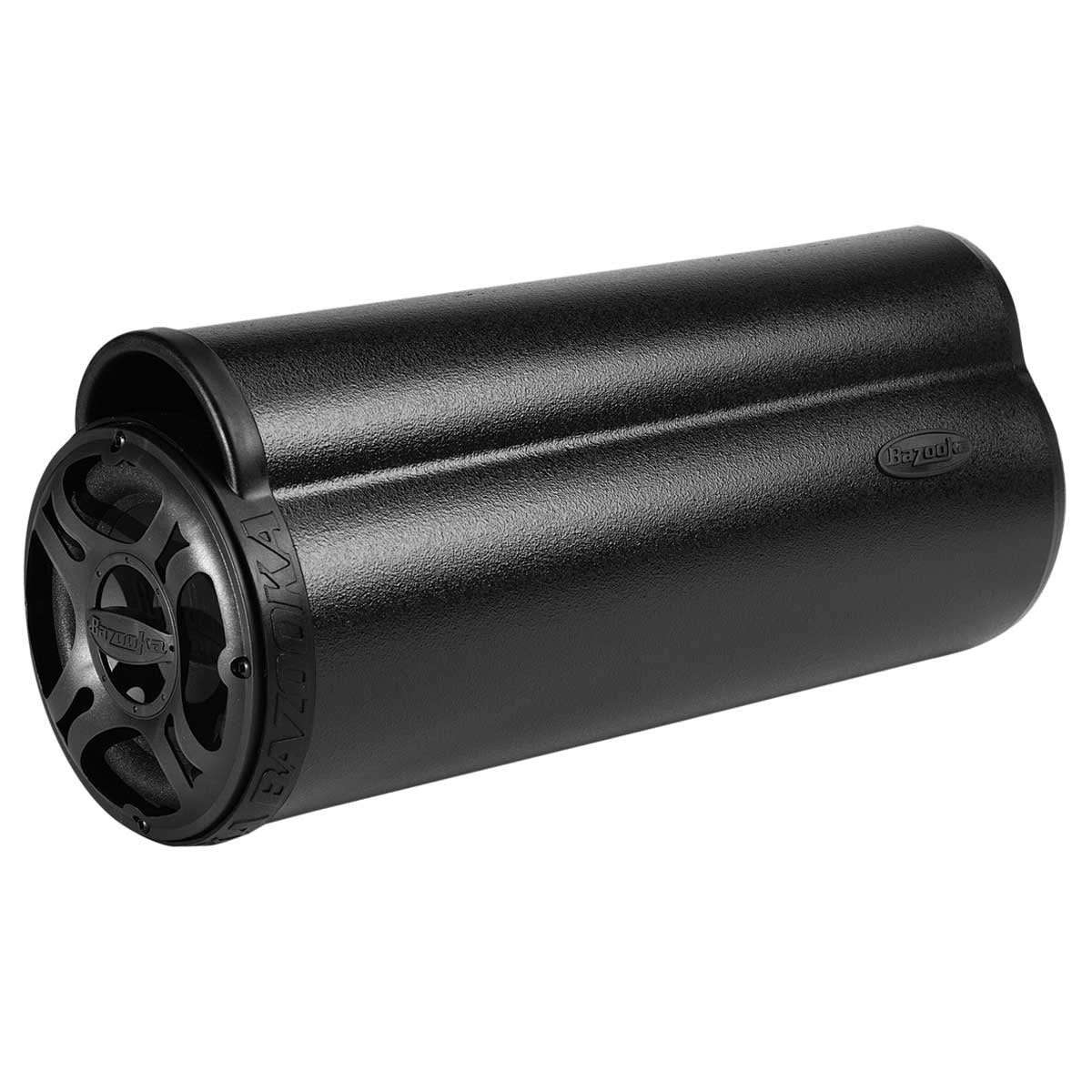

Our 6-inch amplified Bass Tubes® have a built-in 100-watt BTL or 250-watt Class D amplifier in a Bass Tubes® enclosure and variable gain control. They’re easy to install and the perfect way to upgrade any audio system with a variable 50–120 Hz crossover (250D versions). It has a 6.5-inch dual voice coil subwoofer and, thanks to its compact size, fits great behind the seats of small trucks and in the trunks of sedans and hatchbacks. Straps included for secure mounting.
(BTA6100) (BTA6250D)
(BTA6100) (BTA6250D)

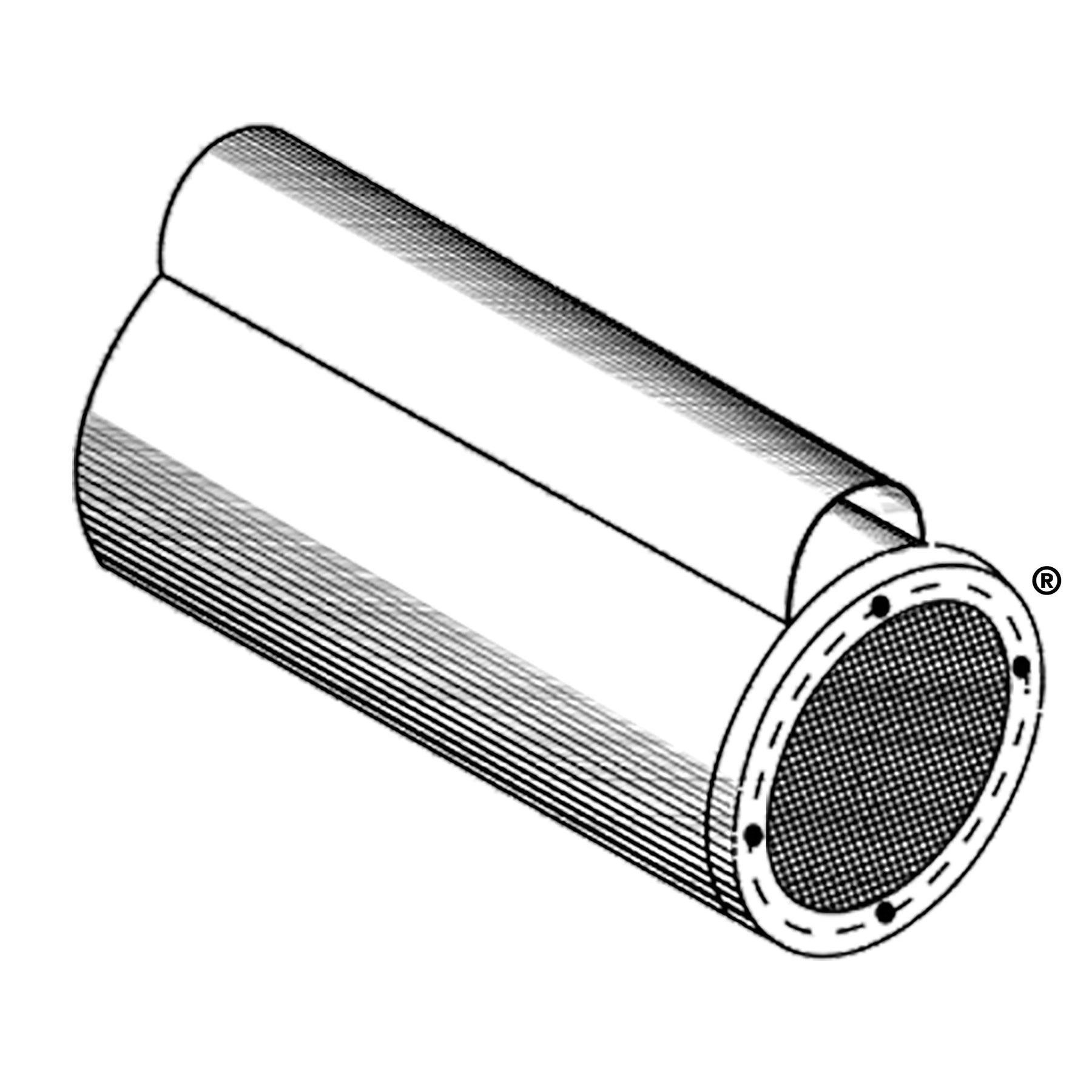

- Bass Tubes® enclosures promote maximum efficiency

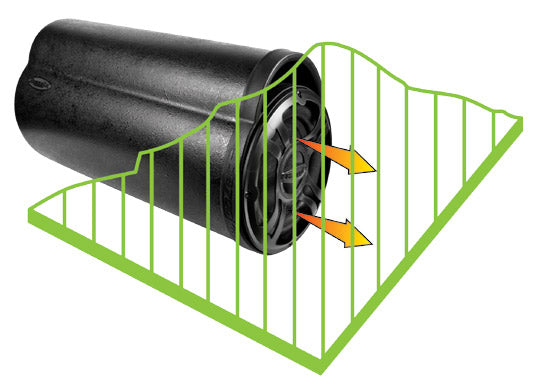

- Optimized for corner loading for maximum bass output
- Built-in 100-watt BTL or 250-watt Class D amplifier
- 6.5” dual voice coil subwoofer
- Fixed 85 Hz crossover (100 W) or variable 50–120 Hz crossover (250D)
- Variable gain control
- Includes straps for secure mounting
Specifications
| Model | BTA6100 | BTA6250D |
|---|---|---|
| Woofer | 6.5" | 6.5" |
| Built-in amplifier | 100 W BTL | 250 W Class D |
| Frequency response | 35–85 Hz | 35–250 Hz |
| Crossover | Fixed 85 Hz | Variable 50–120 Hz |
| Efficiency | 103 dB | 100 dB |
| Gain control | Variable | Variable |
| Inputs | RCA + speaker-level | RCA + speaker-level |
| Auto turn-on | Yes | Yes |
| Optional remote | RBCM-100 | RBCM-250D |
| Add a 2nd tube | No | Yes |

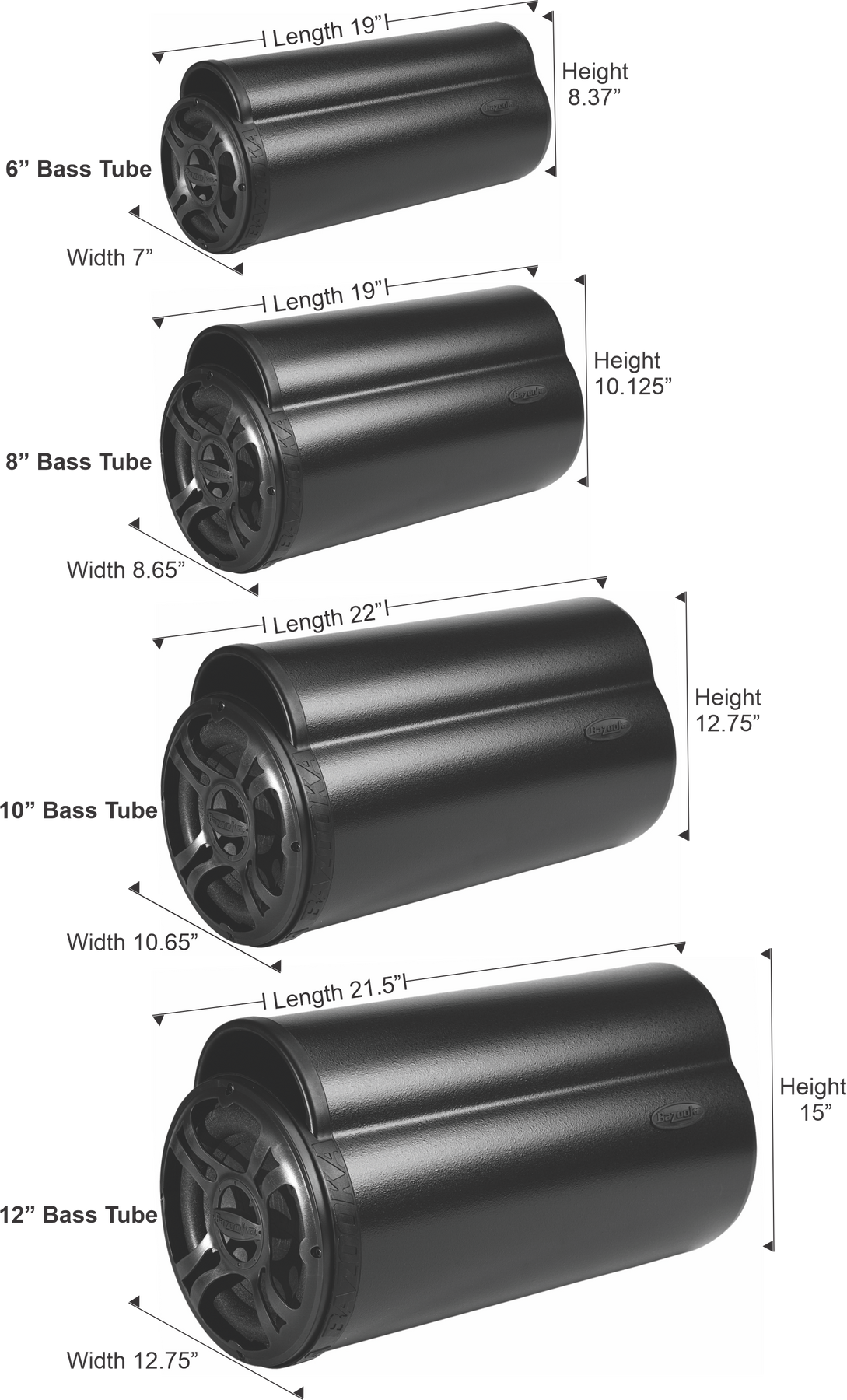

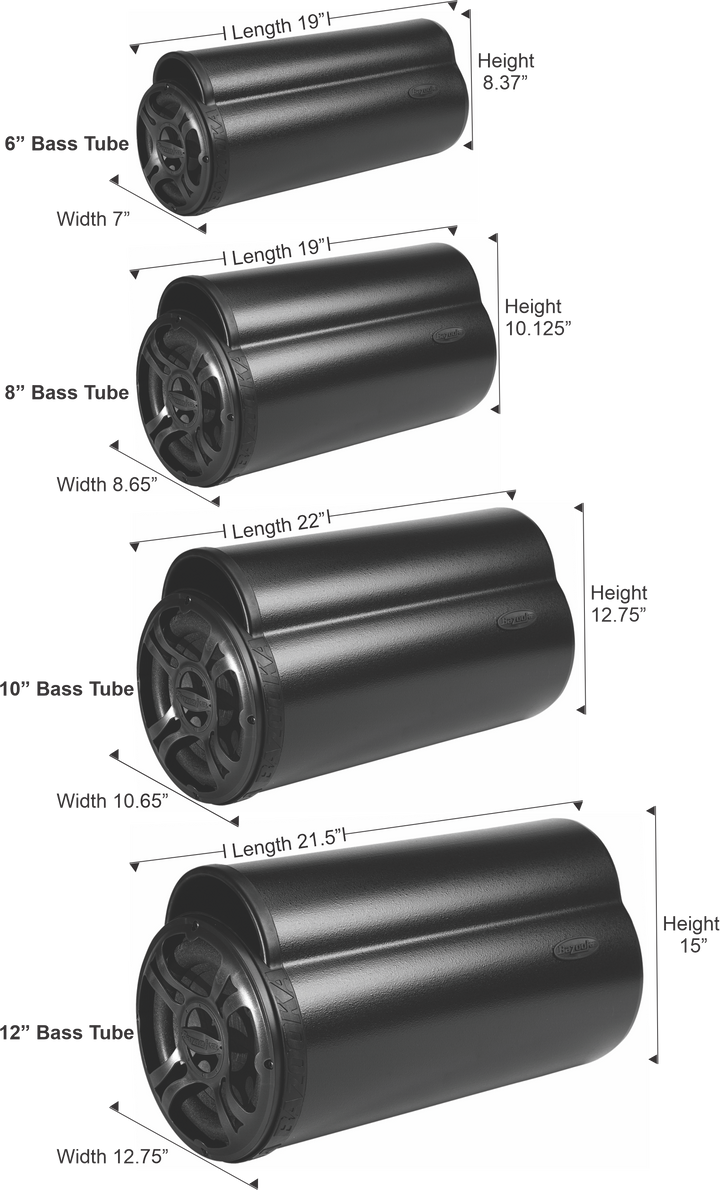

| Dimensions (L × W × H) | 19 × 7 × 8.4 in | 19 × 7 × 8.4 in |
| Weight | 12.5 lb | 16.5 lb |
| More specs | ||
| Fuse | 7.5 A | 30 A |
| Battery voltage range | 10.5–14.4 V | 10.5–14.4 V |
| Voice coil | 1.5" | 2" |
| Subsonic filter | Yes | Yes, 12 dB at 25 Hz |
250D models have a speaker-level output that feeds a second, passive Bass Tubes® enclosure.
In the box: Bass Tubes® enclosure with built-in amplifier, wiring harness, mounting straps and hardware, and instruction manual.
